Smart Security Systems
TD-D32A

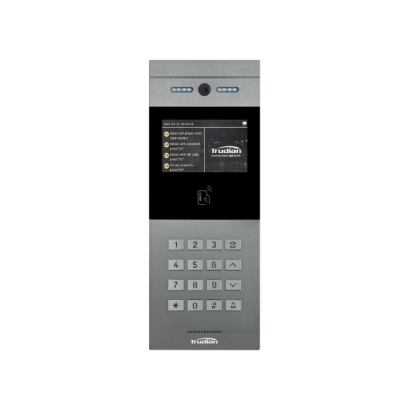

IP video intercom TD-D32A is equipped with a 4․3-inch LCD screen and mechanical buttons. It offers unlocking via an indoor monitor, password, cards, QR codes and remote control via the cloud platform.
Technical parameters
- Material: Pure aluminum and acrylic
- Button։ Mechanical button
- Screen Display: 4.3" LCD
- Screen Resolution: 480*272
- Camera: 2 million pixels
- Access Control: digital standard IC network access control
- Power Supply: 12V
- Standby Current: 230mA
- Working Current: 250mA
- Working Temperature: -40°C~70°C
- Working Humidity: 10%~90%
- OS: Linux
- RAM: 128MB
- Flash: 16MB
- Reading Distance: 0~6mm
- Card Capacity: Unlimited (read and write sectors)
- Installation Method: Embedded
- Remote Online System Upgrade: Yes
- Functions: Video intercom, camera surveillance, elevator control
- Unlocking: Indoor monitor, password, card, QR code, cloud platform remote control
- Alarm: Automatic detection of door opening and closing status
- Visitors Messages: Yes
- IP Rating: IP65
- Appearance Size: 353*130*60mm
- Wall Buried Size: 340*122*52mm
