Smart Security Systems

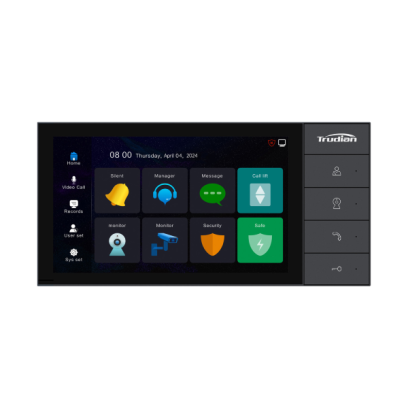

TD-R39
The TD-R39 IP video intercom monitor has a touch button interface for convenient user interaction. It features a 7-inch capacitive touch screen for clear and responsive display.
Technical parameters
- Material: Engineering ABS and tempered glass
- Button: Touch button
- Screen Display: 7" capacitive LCD touch screen
- Screen Resolution: 800*480
- Networking Method: TCP/IP
- Connectable Sensors: 8
- Power Supply: DC 12V
- Standby Current: 150mA
- Working Current: 450mA
- Working Temperature: -10°C~55°C
- Working Humidity: 10%~90%
- OS: Embeded Linux
- CPU: ARM Cortex A8 600MHz
- RAM: 128MB
- Flash: 16MB
- Codec: H264, 720P 30fps
- Installation Method: Wall-mounted
- Basic Functions: Video call, calling management center, door-to-door intercom, remote unlocking, camera surveillance, security alarm, notification release, visitor message
- Extensible Functions: Smart home, elevator control
- Power Interface: 12V power interface
- Network Interface: 1 set of RJ45 10M/100M Ethernet port
- Alarm Zone Interface: 8 sets (connected to security sensor)
- RS485 Signal: 1 set
- Ding Dong Input: 1 set
- Appearance Size (H*W*D): 226*110*12.4mm
