Smart Security Systems

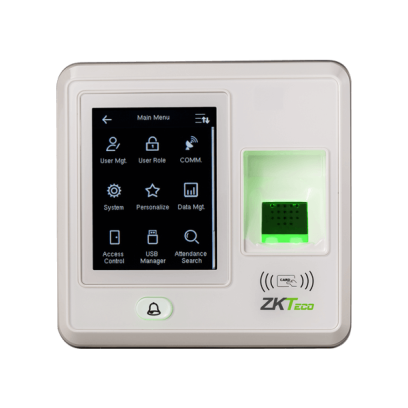

SF300
The SF300 is an IP based fingerprint terminal, which operates in both network mode and standalone mode.
Technical parameters
- Fingerprint Capacity: 1,500
- ID Card Capacity: 5,000 (Optional)
- Transaction Capacity: 80,000
- Display: 2.8 inch capacitive touch screen
- Communication: TCP/IP, USB Host
- Access Control Interface for: Electric lock, Door sensor, Alarm, Exit button, Door Bell
- Wiegand Signal: Input & output
- Aux Input: 1ea for linkage function
- Standard Functions: DST, Automatic Status Switch, Record query, T9 input, 9 digit user ID,Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) ,webserver(Optional)
- Power Supply: DC 12V 3A
- Operation Temperature: 0°C - 45°C
- Operation Humidity: 20% - 80%
- Dimension (L*W*H): 105*105*34mm
