Smart Security Systems

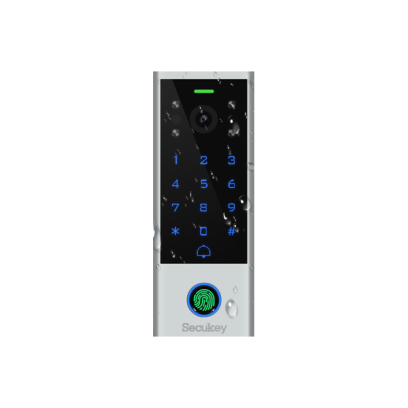

Vcontrol 3-F
Waterproof Fingerkey Access Controller with WiFi-enabled Intercom.
Technical parameters
- Material: Zink-Alloy
- User Capacity: 1000 (100 fingerprints + 900 card&PINs)
- Operating Voltage: DC 12V
- Idle Current: <150mA
- Working Current: <250mA
- PIN Length: 4-6 digits
- Reading Distance: 2-6cm
- Card Frequency: EM 125KHz or Mifare 13.56MHz
- Wiring Connections: Relay Output, exit button, alarm, door contact, Wiegand input/output
- Relay: One (NO/NC/CO)
- Adjustable Relay Output Time: 0-99 seconds
- Wiegand Interface: EM card - Wiegand 26-44 bits input and output, Mifare card - Wiegand 26-44 bits, 56bits, 58bits input and output
- IP Rating: IP65
- Color: Silver and Black
- Operating Temperature: -20°C - 60°C
- Operating Humidity: 0% - 96%
- Dimensions (H*W*D): 147*56*26mm
- Weight: 470g
- Network: 2.4G WiFi connection
- Pixel: 2.0Mpx (1080P)
- Visual Angle: Horizontal 140° wide angle
- Night Vision: IR-CUT (Colourful at daytime, black and white at night)
- Extended Memory: TF card with unlimited capacity
- Intercom: Full duplex voice intercom
- Other Functions: Motion Detection, Playback, Take picture/video, Unlock remotely
