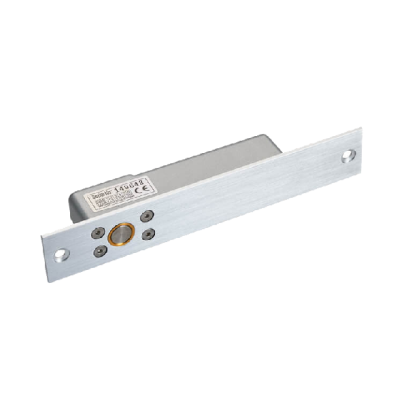

Electric bolt lock LB-35
Technical parameters
- Suitable for: Frameless glass doors with glass thickness from 12mm to 15mm
- Material: High Strength Aluminium
- Operating Voltage: DC 10-24V
- Start Current: 1A ± 10%
- Standby Current: 110mA ± 10%
- Holding Force: 1000kg
- Dimensions (L*W*H): 209*60*46mm
- Bolt: diameter 12mm, SUS304 Stainless Steel
- Time Delay: Yes (0,3,6 sec)
- Weight: 0.719kg
