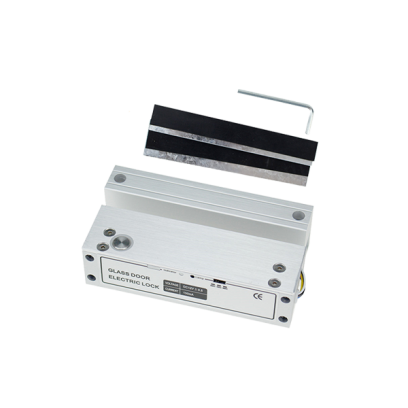

Electric bolt lock C-Strike 3
Technical parameters
- Suitable for: Frameles Glass Door (both up and down)
- Material: High Aluminium
- Fail Safe: Locked when energized
- Voltage: 12V DC
- Start Current: 900mA
- Standby Current: 120mA
- Holding Force: 800kg
- Bolt: diameter 12mm DIA, stainless steel
- Induction Distance: 8mm
- Signal Output: Door Status Output, NC/COM/NO
- Surface Temperature: Low
- Operating Temperature: -10°C - 55°C
- Operating Humidity: 0% ~ 90%
- Dimensions (L*W*H): 146*42*38mm
- Weight: 0.67kg
