DSN-50P

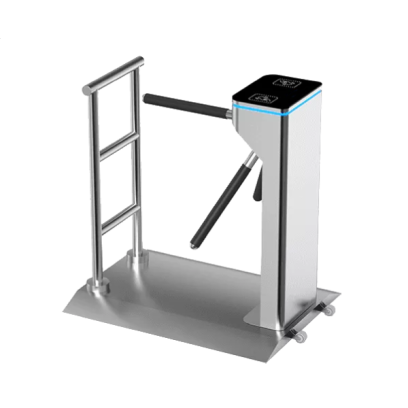

The most notable feature of DSN-50P portable turnstile is convenience and portability.
This model consists of turnstile + base + bar + 2 wheels. It can be used on the ground that does not need to be drilled, and it has two wheels to move easily.
Technical parameters
- Framework Material: 304 brushed stainless steel+ High end black tempered film glass
- Arm Material: 304 Stainless Steel
- Dimension: Turnstile: 360*260*980mm, Base: 980*720*50mm, Bar: 460*969mm
- Weight: 50kg
- Passage Width: 550mm (Arm length: 500mm)
- Passing Direction: Single directional / Bi-directional
- Power Supply: AC 220V/110V, 50/60Hz
- Operation Voltage: 24V DC
- Power Consumption: 40W
- Operation Temperature: -15°C - 60°C
- Operation Humidity: 0 ~ 95%
- Working Environment: Indoor / Outdoor
- Flow Rate: 35 people per minute
- LED Indicator: Three LED indicators on top: blue→default, green → valid, red → invalid
- Emergency: Automatic arm open when power off
- Communication: Dry contact, Relay signal, RS485
