Smart Security Systems

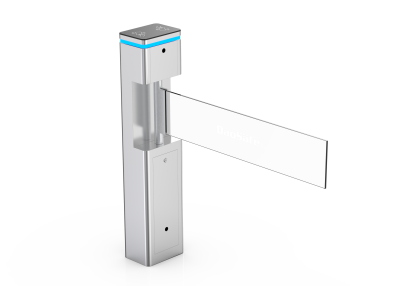

DS225
DS225 swing turnstile's the most attractive features are exquisite and beauty.
Technical parameters
- Framework Material: 304 brushed stainless steel+ High end black tempered film glass
- Arm Material: Plexiglass
- Dimension: 230*165*1050mm
- Weight: 25kg
- Passage Width: 900mm
- Passing Direction: Single directional / Bi-directional
- Power Supply: AC 220V/110V, 50/60Hz
- Operation Voltage: 24V DC
- Power Consumption: 40W
- Operation Temperature: -20 °C - 75 °C
- Operation Humidity: 0 ~ 95% (No freeze)
- Working Environment: Indoor / Outdoor
- Flow Rate: 40 people per minute
- LED Indicator: Yes
- Infrared Sensor: 2 pairs up or down (optional)
- Emergency: Automatic arm open when power off
- Communication: Dry contact, Relay signal, RS485
