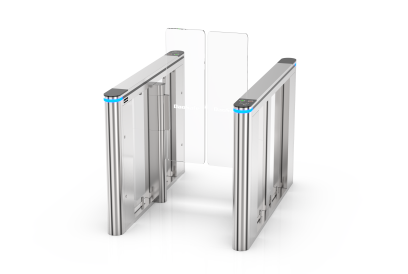

DS7100H
Turnstile DS7100H is designed in a super-fast, slim and artistic style to provide access control at places with elegant requirement, like business center, hotel and hall.
Technical parameters
- Framework Material։ 304 Full Stainless Steel
- Arm Material: Plexiglas - transparency
- Dimension: 1500*120*1020mm
- Weight: 80kg
- Passage Width: 600-1200mm
- Glass Height: 930-1800mm
- Passing Direction: Single directional / Bi-directional
- Power Supply: AC 220V/110V, 50/60Hz
- Operation Voltage: 24V DC
- Power Consumption: 40W
- Operation Temperature: -15°C - 60°C
- Operation Humidity: 0 ~ 95% (No freeze)
- Working Environment: Indoor / Outdoor
- Flow Rate: 45-55 people per minute
- LED Indicator: Yes
- Infrared Sensor: 6 pairs
- Emergency: Automatic arm open when power off
- Communication: Dry contact, Relay signal, RS485
