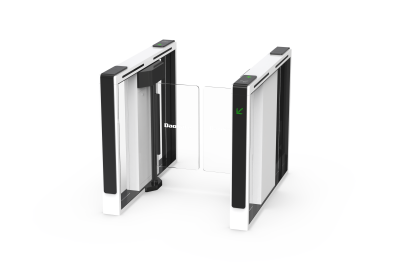

DS-Q20
DS-Q20 optical swing turnstile is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions. With 1100mm wide passageway, it supports easy passing of wheelchair and large package.
Technical parameters
  • Framework Material։ Steel + White and black stoving varnish
  • Swipe Card Panel Material: Tempered glass
  • Arm Material: Plexiglas - transparency
  • Dimension: 1400*120*978mm
  • Weight: 65kg
  • Passage Width: 600-1100mm
  • Passing Direction: Single directional / Bi-directional
  • Power Supply: AC 220V/110V, 50/60Hz
  • Operation Voltage: 24V DC
  • Power Consumption: 40W
  • Operation Temperature: -20°C - 75°C
  • Operation Humidity: 0 ~ 95% (No freeze)
  • Working Environment: Indoor / Outdoor
  • Flow Rate: 40 people per minute
  • LED Indicator: Yes
  • Infrared Sensor: 6 pairs
  • Emergency: Automatic arm open when power off
  • Communication: Dry contact, Relay signal, RS485
