Smart Security Systems

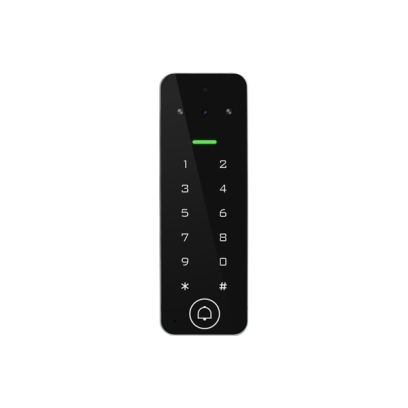

Vcontrol 4-K
Keypad Access Controller with WiFi-enabled Intercom.
Technical parameters
- Material: Zink-Alloy
- Hardware User Capacity: 1000
- Mobile User Capacity: 500
- Operating Voltage: DC 12-18V
- Idle Current: <60mA
- Working Current: <150mA
- PIN Length: 4-6 digits
- Reading Distance: 2-6cm
- Card Frequency: EM 125KHz or Mifare 13.56MHz
- Wiring Connections: Relay Output, exit button, Wiegand input/output
- Relay: One (NO/NC/CO)
- Adjustable Relay Output Time: 0-99 seconds
- Wiegand Interface: EM card - Wiegand 26-44 bits input and output, Mifare card - Wiegand 26-44 bits, 56bits, 58bits input and output
- IP Rating: IP65
- Color: Silver and Black
- Operating Temperature: -40°C - 60°C
- Operating Humidity: 0% - 92%
- Dimensions (H*W*D): 142*48*22mm
- Weight: 315g
