Smart Security Systems

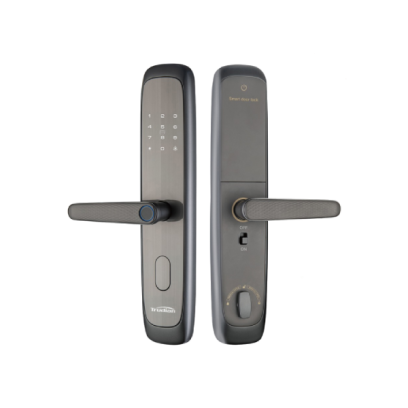

TD-W1-B
Smart lock working with fingerprints, PIN code, dynamic password, IC card, and mechanical key for backup (for emergency cases), and which also can be controlled by Tuya app.
Technical parameters
- Material: Aluminum alloy
- Unlocking Options։ Fingerprint, PIN code, dynamic password, IC card, key, Tuya App
- Fingerprint Sensor։ Semiconductor fingerprint sensor
- Number of Administrators։ 10 groups
- Number of Fingerprints։ 50 groups
- Fingerprint + Password + Card Capacity։ 250 groups
- Keyboard: Standard 12 bit touch keyboard
- Password Length: 8 bits
- Anti-Peeping Password Length: 16 bits
- Power Supply: DC 6V
- Standby Current: <50mA
- Working Current: <180mA
- Low Voltage Alarm։ 4.8±0.2V
- Emergency Power Supply։ Type-C 5V 2A
- Battery: 4pcs AA batteries
- Working Temperature: -25°C~60°C
- Working Humidity: 20%~90%
- Double-Locking: Yes
- Lock Mortise Size: 6068
- Lock Cylinder Standard: Class C / Class B+ lock cylinder
- Color: Gray
- Size (H*W*D): 365*76*68mm
- Weight: 2.64kg
- Connect to Tuya App: WiFi
