Smart Security Systems

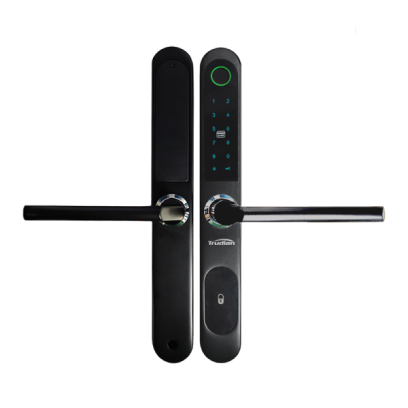

TD-M1-B
Smart lock working with fingerprints, PIN code, dynamic password, IC card, and mechanical key for backup (for emergency cases), and which also can be controlled by Tuya app.
Technical parameters
- Material: Aluminum
- Unlocking Options։ Fingerprint, PIN code, dynamic password, IC card, mechanical key, Tuya App
- Sliding Door: support
- Fingerprint Sensor Type։ Semiconductor fingerprint sensor
- Fingerprints Capacity։ 100
- Password Capacity։ 100
- IC Card Capacity։ 50
- Supported IC Card Type: MIFARE M1 card
- Supported Phone Systems: Android 5.0 or IOS7.0 and above
- Keyboard: Capacitive touch keypad
- Power Supply: DC 4.5V ~ 9V
- Standby Current: <50mA
- Working Current: <200mA
- Low Voltage Alarm։ 4.6V
- Battery: 4pcs 1.5V AA alkaline dry batteries
- Working Temperature: -20°C~60°C
- Working Humidity: 40%~90%
- Supported Mortise: 2585/2885/3085/3585/4085/4585/5085/6085, 2885/3585 multi-point, 2085/2885/3585 double-hook
- Connect to Tuya App: Bluetooth
- Bluetooth Standard: Bluetooth 4.2 BLE
- Connection Mode: Long connection (keep Bluetooth online)
- Bluetooth Gateway: Support
- Door Opening Record: Support
- Alarm: All kinds of door lock alarm
- Unlocking Time: ≤ 1.5s
- Size: 28.6x315.6x22.8mm
