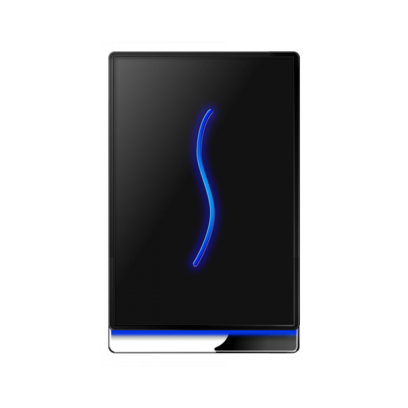

SCR100
SCR-100 is an access control terminal with incorporated Em-Marine cards proximity reader. With a modern and elegant design without keypad and display, it’s the perfect solution for small and medium access control installations.
Technical parameters
- ID card Capacity: 30,000
- Transaction Capacity: 50,000
- Communication: TCP/IP, RS232/485, USB-Host
- Access Control Interface for: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
- Wiegand Signal: Output & Input
- Standard Functions: Anti-passback, Webserver, 9 digital numbers
- Power Supply: 12V DC
- Operation Temperature: 0°C - 45°C
- Operation Humidity: 20% - 80%
- Dimension (L*W*H): 153*95.5*35.5mm
- Weight: 0.8kg
