SC405

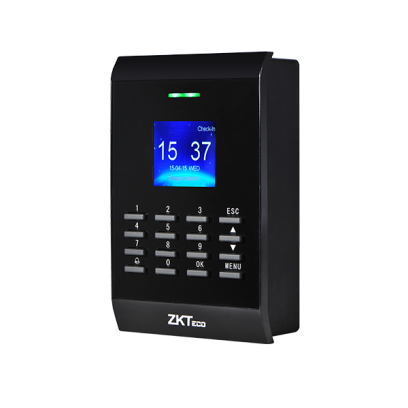

SC405 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control.
Technical parameters
- ID card Capacity: 30,000
- Transaction Capacity: 80,000
- Communication: TCP/IP, RS485, USB-Host
- Access Control Interface for: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
- Auxiliary Interface: 1ea for linkage function
- Wiegand Signal: Output & Input, SRB
- Standard Functions: ID Card, Automatic Status Switch, Self-Service Query, DST, 9 Digit User ID, Scheduled Bell, Anti-passback
- Display: TFT LCD Color Screen
- Power Supply: 12V DC
- Operation Temperature: 0°C - 45°C
- Operation Humidity: 20% - 80%
- Dimension (L*W*H): 143*96*42mm
