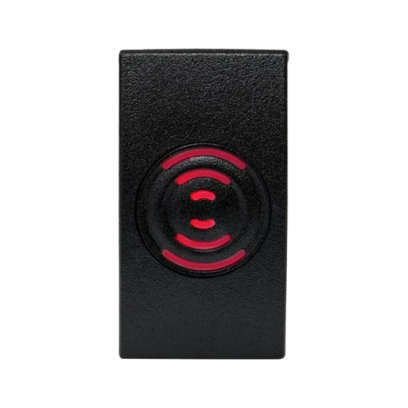

KR201E
EM-Marine 125kHz access control card reader. With an elegant and robust design, they are easy to connect and install, and are ideal solution for outdoor installation.
Technical parameters
- Reading Range: Up to 10cm
- Reading Time: <300ms
- Power: DC 6-14V / Max.70mA
- Input Port: 2ea (External LED Control, External Buzzer Control)
- Output Card Format: 26bit Wiegand
- LED Indicator: 2 Color LED Indicators (Red and Green)
- Beeper: Yes
- Operating Temperature: -20°C - 65°C
- Operating Humidity: 10% - 90%
- Color: Black
- Material: ABS+PC with texture
- IP Rating: IP65
- Dimensions (H*W*D): 86*44*16.8mm
- Weight: 55g
