Smart Security Systems

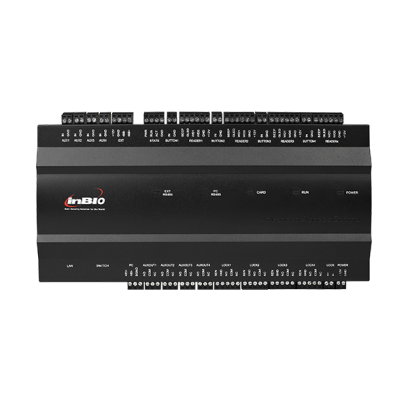

InBio-460
IP-based Biometric Door Access Control Panel.
Technical parameters
- ID card Capacity: 30,000
- Fingerprint Capacity: 3,000
- Transaction Capacity: 100,000
- Communication: TCP/IP
- Number of Doors Controlled: 4
- Number of Readers Supported: 12 (8*RS-485 Readers, 4*26/34-bit Wiegand Readers)
- Types of Readers Supported: 26 / 34-bit Wiegand and RS485 FR Series Reader
- Number of Inputs: 12 (4 Exit Device, 4 Door Status, 4 AUX)
- Number of Outputs: 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
- Mounting: Wall Mount
- Power Supply: 9.6V-14.4V DC
- Operating Temperature: 0°C - 45°C
- Operating Humidity: 20% - 80%
- Dimensions (L*W*H): 226*106*36mm
- Weight: 1.11kg
