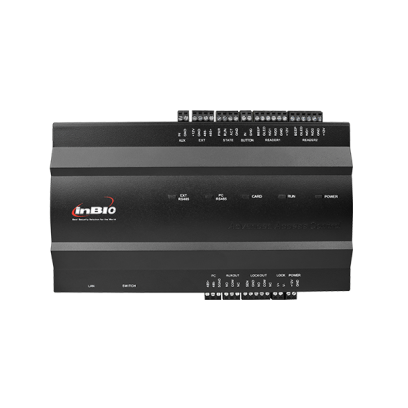

InBio-160
IP-based Biometric Door Access Control Panel.
Technical parameters
- ID card Capacity: 30,000
- Fingerprint Capacity: 3,000
- Transaction Capacity: 100,000
- Communication: TCP/IP
- Number of Doors Controlled: 1
- Number of Readers Supported: 4 (2*RS-485 Readers, 2* 26/34-bit Wiegand Readers)
- Types of Readers Supported: 26 / 34-bit Wiegand and RS485 FR Series Reader
- Number of Inputs: 3 (1 Exit Button, 1 Door Status, 1 AUX)
- Number of Outputs: 2 (1-Form C Relay for Lock and 1 Form C Relay for Aux Output)
- Mounting: Wall Mount
- Power Supply: DC 12V, 1.5A
- Operating Temperature: -10°C - 50°C
- Operating Humidity: 20% - 80%
- Dimensions (L*W*H): 185*106*36mm
- Weight: 0.82kg
