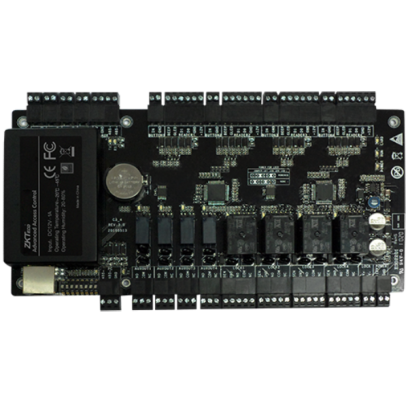

C3-400
IP-based Door Access Control Panel for four doors with built-in access control functions and Wiegand readers support.
Technical parameters
- ID card Capacity: 30,000
- Transaction Capacity: 100,000
- Communication: TCP/IP, RS-485
- Number of Doors Controlled: 4
- Number of Readers Supported: 4
- Types of Readers Supported: 26-bit Wiegand
- Number of Inputs: 12 (4 Exit Device, 4 Door Status, 4 AUX)
- Number of Outputs: 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
- Enclosure: Powder Coated Aluminium
- Mounting: Wall Mount
- Power Supply: DC 12V, 1.5A
- Dimensions (L*W): 216*99mm
- Weight: 0.46kg
